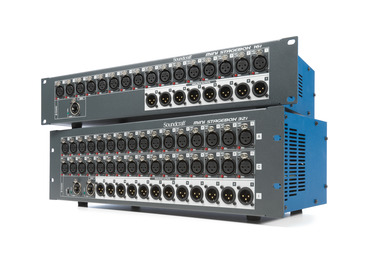

Mini Stagebox 32i / 16i Compact digital stagboxes with remote control

The Mini Stagebox 32i and 16i from Soundcraft combine high-quality components and an optimized design. They allow you to easily add input and output channels to your Si-series mixing consoles.

Developed in Studer mic preamps, provide exceptional sound quality, and compact form factor stajboks - ease of transportation and installation.

This is an ideal solution for concert sound engineers, music groups, clubs and corporate events. Soundcraft Mini Stagebox will eliminate heavy and expensive analog copper cables, replacing them with a single cable type Cat5.

High-quality components

The Mini Stagebox from Soundcraft is characterized by high quality, traditional for all solutions of this manufacturer. Microphone preamps transmit a warm, rich sound for live performances and studio use.

Enter exit

Digital redistribution between the console and the stackbox takes place using a standard Cat5 cable over the MADI protocol.

The Mini Stagebox 32i has thirty-two microphone inputs and twelve outputs per XLR, while the Mini Stagebox 16i has 16 inputs and 8 outputs, respectively.

Optimized design

The optimized stagingbox design allows you to simply connect the MADI interface power cable and cable and operate the system remotely using the Soundcraft Si mixing console.

Full integration with the SI SERIES mixer

Mixers Soundcraft of Si series provide remote control of input / output of steadboxes. Owners of Si Impact consoles can simultaneously use the inputs to the staged boxes and the console's own inputs. In addition, if you insert a second MADI card into the console, you can connect the second stagedbox and select up to 80 channels to the mix (after updating the Si Impact firmware).

Data sheet

Mini Stagebox 32i:

Legendary preamplifier from Studer for professional use.

RJ45 / Cat5 connection, which allows you to use the steadbox at a distance of 100 m from the mixing console.

32 mic preamps with remote control.

12 analog outputs XLR.

Dual MADI connection.

The case is 3U high.

Mini Stagebox 16i:

Legendary preamplifier from Studer for professional use.

RJ45 / Cat5 connection, which allows you to use the steadbox at a distance of 100 m from the mixing console.

16 mic preamps with remote control.

8 analog outputs XLR.

One MADI connection.

The case is 2U high.
